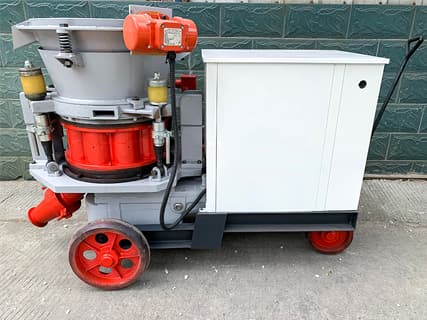

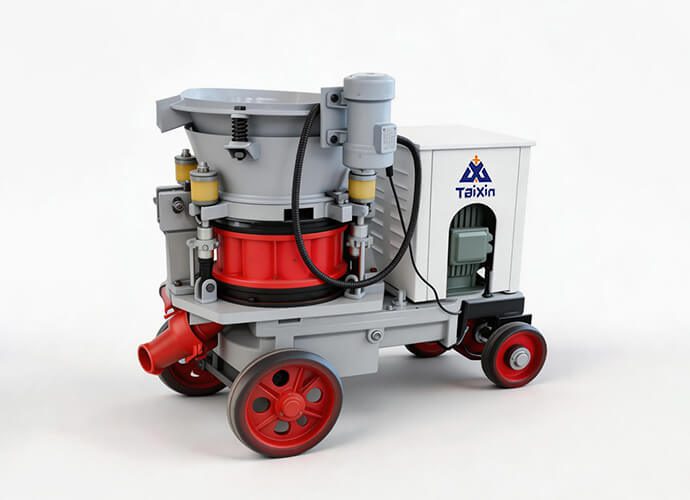

Dry Shotcrete Machine
Application: This machine is mainly used for dry-mix concrete spraying in tunnelling, culvert, subway, slope stabilization, swimming pools, mining and underground engineering
Introduction Of Dry Shotcrete Machine
This machine is mainly used for dry-mix concrete spraying in tunnelling, culvert, subway, slope stabilization, swimming pools, mining and underground engineering; The explosion-proof type is suitable for coal mining, chemical mine and other places with high combustible gas.
Can be equipped with electric, pneumatic or diesel engine drive.

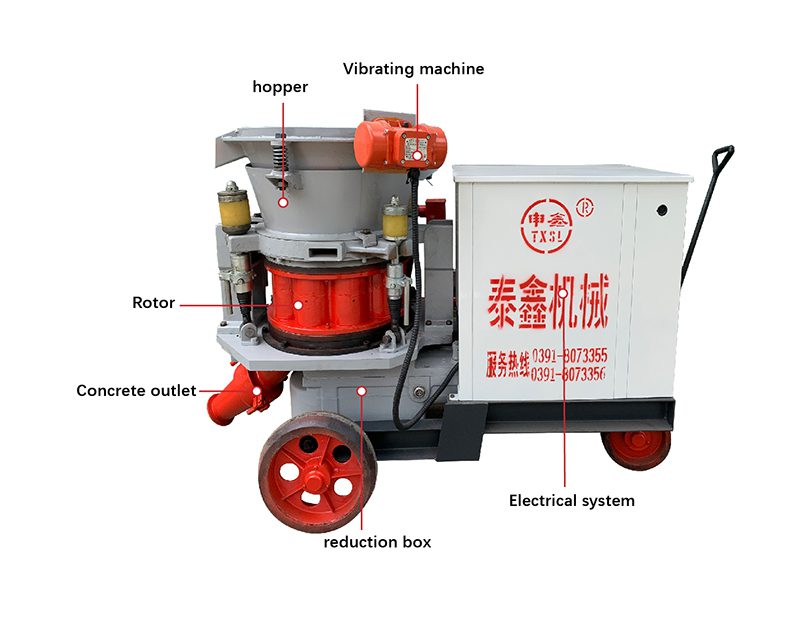

Product Details Of Dry Shotcrete Machine
1. Enlarged material inlet makes it easy for the continuity of the concrete material.
2. The new straight-through rotor is equipped with a polymer elastic material cavity, improve the construction efficiency.
3. The elastic automatic clamping device is adopted to improve the sealing performance of the machine and reduce the wear of the wearing parts.

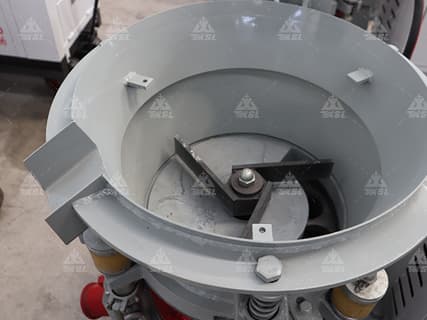

Dipper

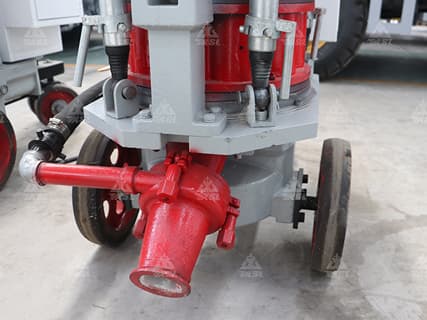

Discharge port

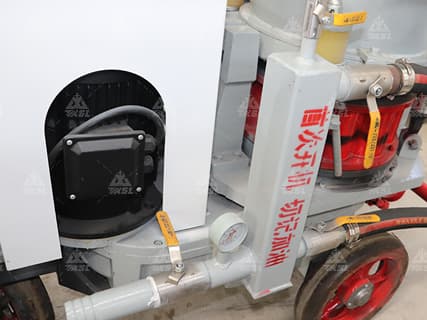

Air duct system

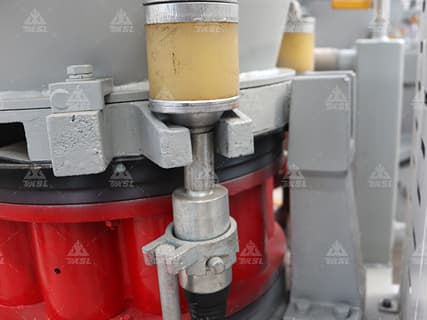

Clamp
hopper

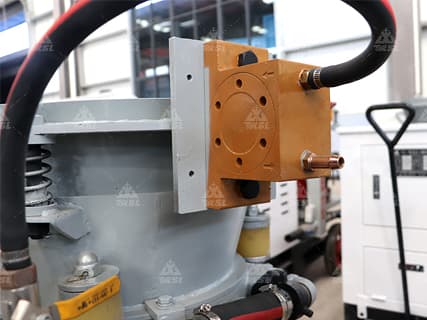

Pneumatic vibrator
MODEL &PARAMETERS
| Model | SGP-6 | PZ-7 | |
| Working Capacity (m³ / h) | 6 | 7 | |
| Max. Convey Distance (m) | 35 vertical, 100 horizontal | 35 vertical, 100 horizontal | |
| Recommended Water-cement Ratio | ≤0.4 | ≤0.4 | |
| Accelerator Dosage (%) | 2-10 | 2-10 | |
| Max. Grain Size (mm) | 20 | 20 | |
| Spraying Hose Diameter (mm) | Φ51 | Φ57/Φ64 | |
| Working Air Pressure (MPa) | 0.4-0.6 | 0.4-0.6 | |
| Air Consumption (m³ /min) | 8-10 | 10-12 | |
| Feeding Height (mm) | 1100 | 1300 | |
| Main Motor + Vibration Motor (kw) | 5.5+0.15 | 7.5+0.25 | |
| Weight (kg) | 750 | 850 | |
| Dimensions (mm) | 1400×800×1100 | 1500×800×1300 |
Related Projects of Dry Shotcrete Machine
Our Dry Shotcrete Machine had been exported to more than 200 countries including South Africa, India, Philippine, Malaysia, America, Germany, Pakistan, etc… The following is part of projects. Click More Projects for details.
Classic Case of Dry Shotcrete Machine
Classic Case of Dry Shotcrete Machine
Classic Case of Dry Shotcrete Machine
Classic Case of Dry Shotcrete Machine
Dry Shotcrete Machine Price
Specific price is determined by many factors, such as capacity, models, etc. As the advanced manufacturer and exporter in china, our shotcrete machine are factory-direct sold, which offer you premium quality and better service.
Rental Shotcrete Machine
Weibang offers a wide range of machinery for flexible hire solutions to suit your needs. Our new and reconditioned machines are supported by a full-service workshop. Whether you choose to rent or purchase our shotcrete, you are sure to get personalised service from Weibang.
