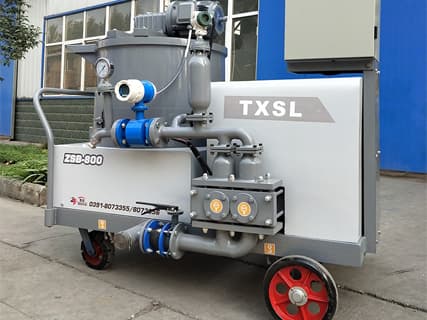

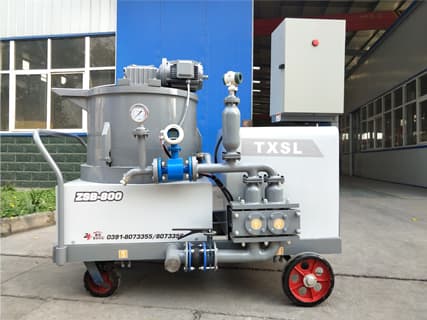

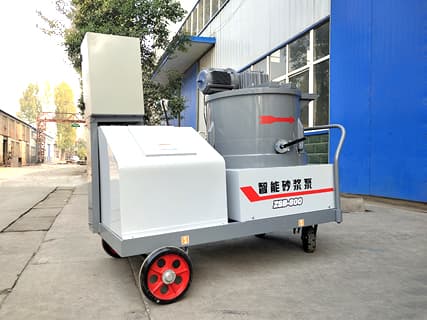

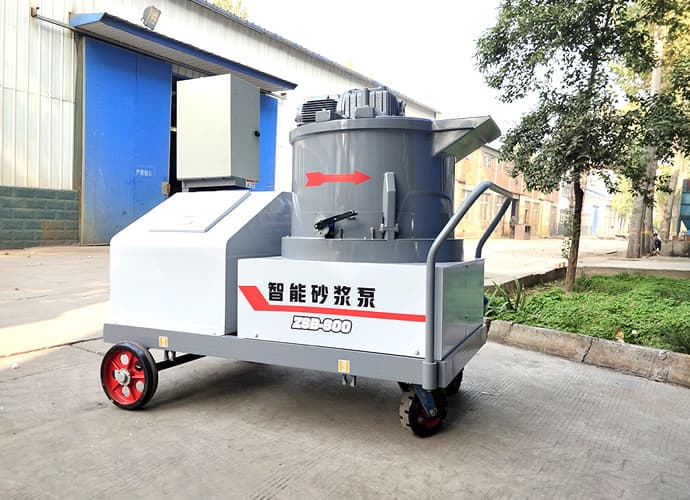

Intelligent Mortar Pump
Application: It is widely used in railway, highway tunnel construction projects, and the production of some chemical enterprises.
Introduction Of Intelligent Mortar Pump
Intelligent mortar pump (commonly known as vault molded grouting integrated machine or intelligent grouting trolley) is a special equipment for railway and highway construction tunnel grouting. The equipment integrates flow and pressure automatic recording, intelligent digital display, uniform mixing, and double-cylinder pumping grouting into one integrated mortar grouting equipment. It is widely used in railway, highway tunnel construction projects, and the production of some chemical enterprises.
Product Details Of Intelligent Mortar Pump
1. The mixing system is double stirring, with upper and lower layers of structure.
2. The pumping system is a double-cylinder structure, the pumping piston is sealed with rubber, up to 8MPa.
3. The outlet of the pumping system adopts a valve body made of special steel balls.
4. The intelligent mortar pump adopts non-contact pressure alarm and pressure limit cut-off settings.

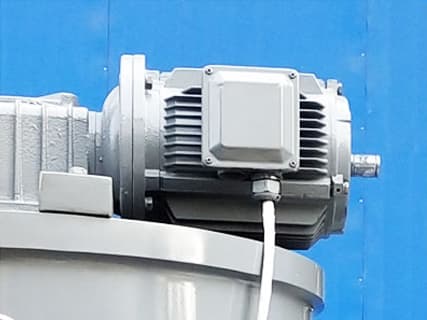

Main motor
Electrical control system

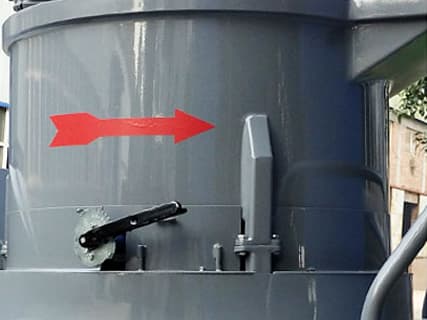

Mixing system
Distribution Cabinet
MODEL &PARAMETERS
| Technical Parameters | Unit | ZSB-800 |
| Grouting power | kw | 11 |
| Pulping power | kw | 4 |
| Production capacity | m³/h | 0-8 |
| Work pressure | Mpa | 0-8 |
| Outlet/inlet diameter | mm | φ32/φ65 |
| Total Weight | kg | 870 |
| L×W×H | mm | 1900×1300×1800 |
Intelligent Mortar Pump Price
Specific price is determined by many factors, such as capacity, models, etc. As the advanced manufacturer and exporter in china, our Intelligent Mortar Pump are factory-direct sold, which offer you premium quality and better service.
