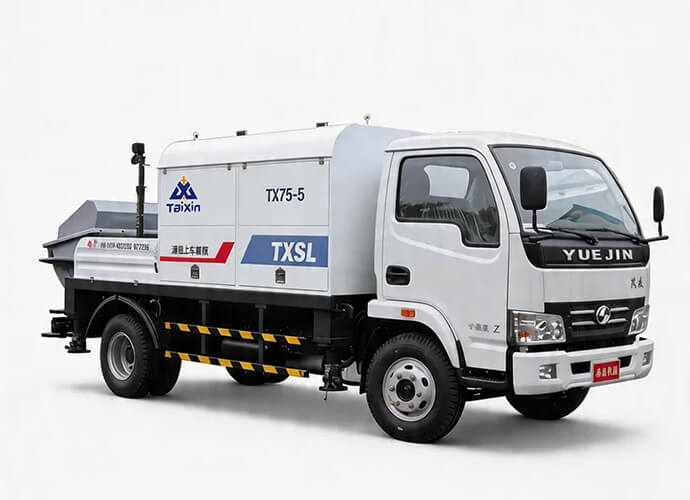

Truck-mounted Concrete Line Pump
Application: high-rise building mortar and fine stone concrete ransportation, hydropower stations, ports, and wharves, foundation treatment, weak foundations, subway.
Introduction Of Truck-mounted Concrete Pump
Concrete vehicle pump is a machine that uses pressure to ontinuously transport concrete along pipelines. It is widely used in construction, bridge, and tunnel engineering.

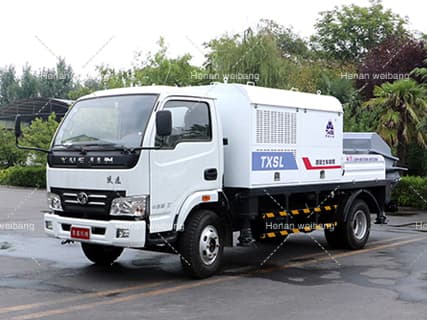

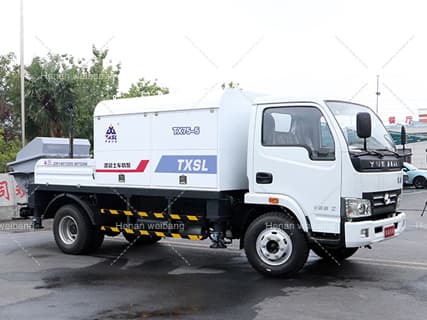

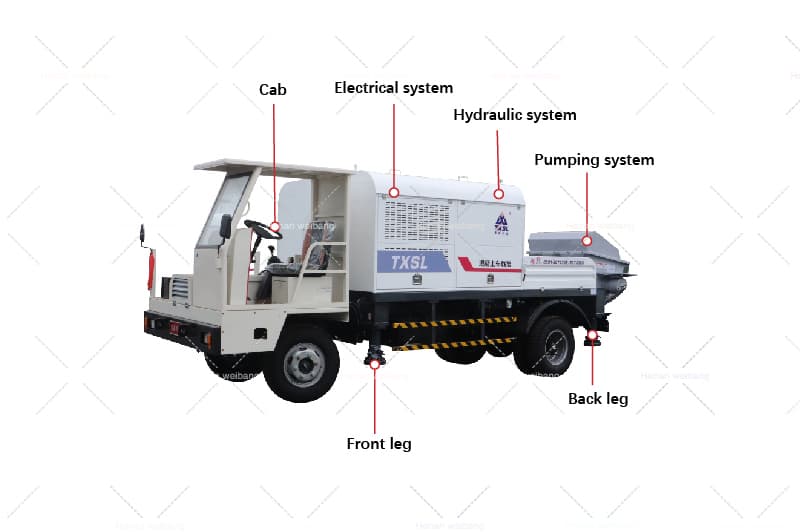

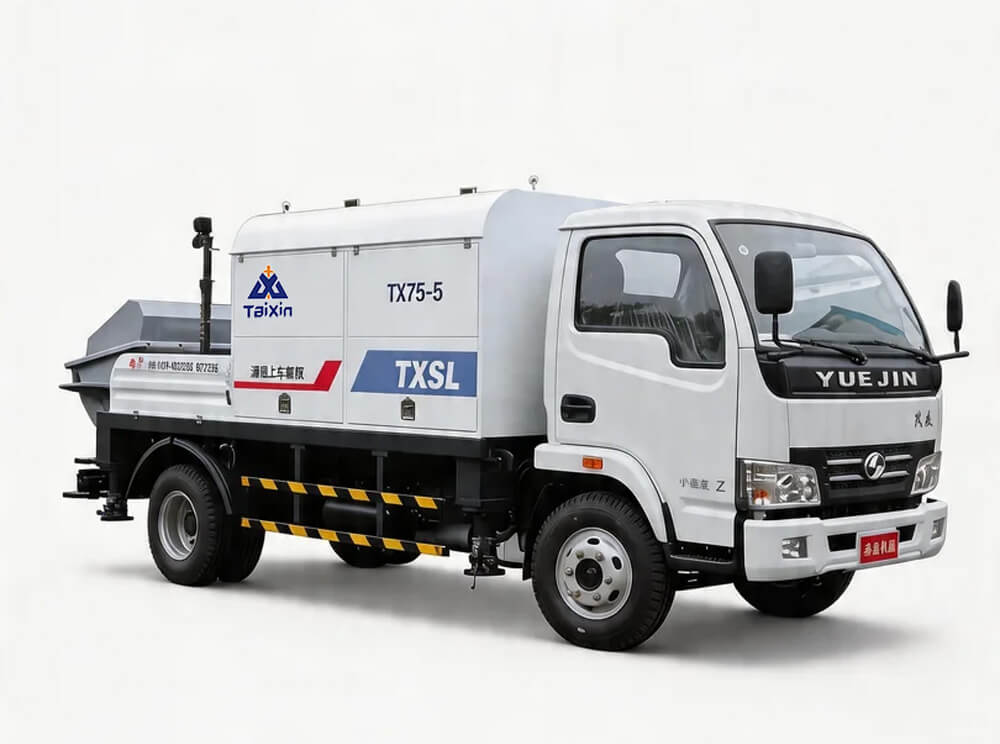

(truck classis)
(truck classis)
(truck classis)

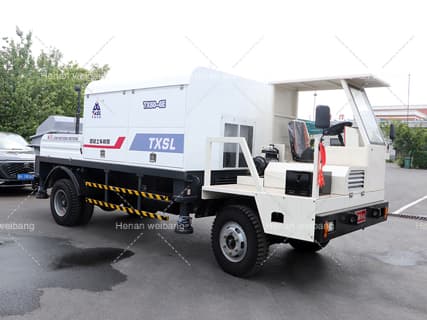

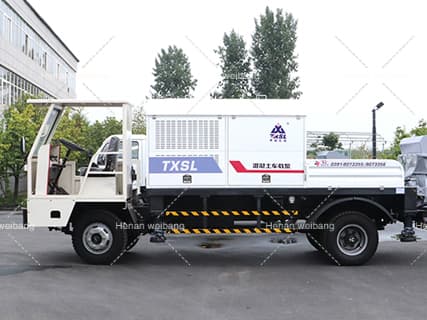

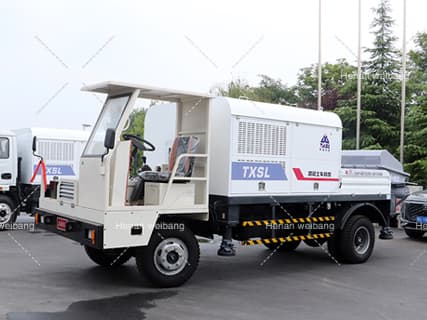

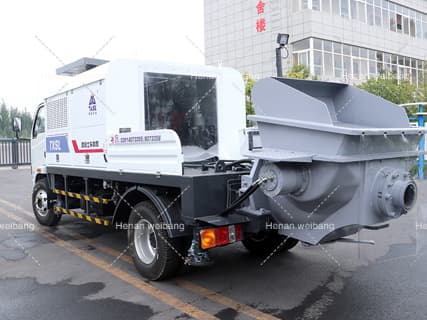

(engineering classis)
(engineering classis)
(engineering classis)

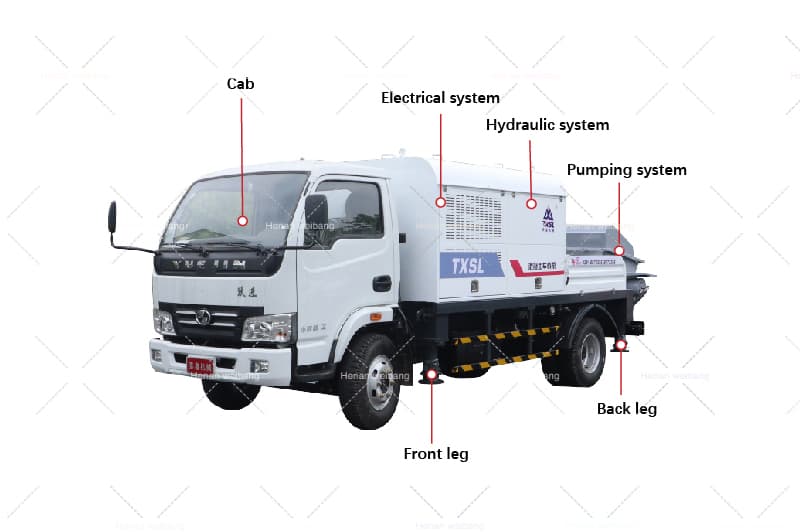

Product Details Of Truck-mounted Concrete Pump
1. The structure design is reasonable, the whole system is stable.
2. Self-propelled design, using the car chassis as the driving force, the equipment is easy to move, the transition is fast.
3. Good sealing performance can improve the work site environment and reduce the harm to the human body to a lower level.

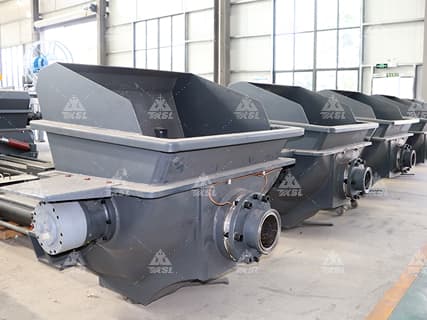

Pumping system

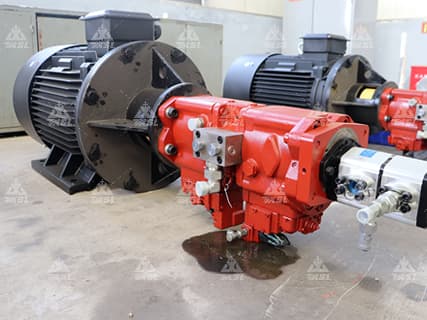

Triple pump

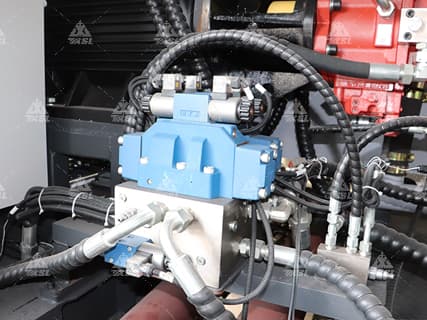

Hydraulic system

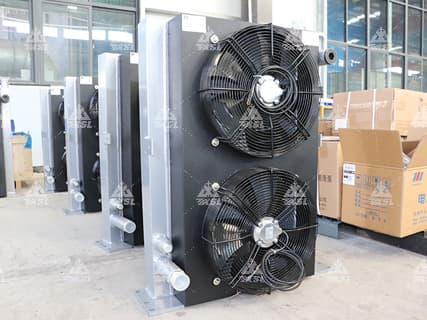

Hydraulic oil radiator

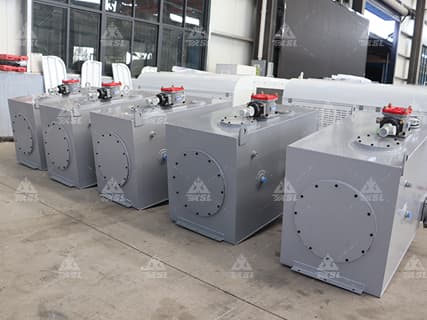

Oil cylinder

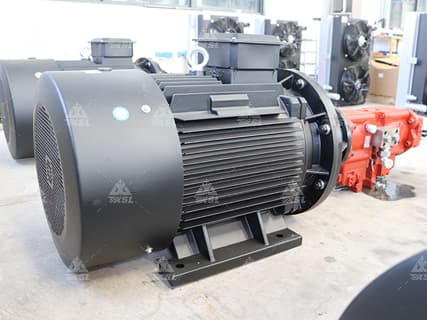

Main oil pump
MODEL &PARAMETERS
| Item | Performance | TX6O-6S (Car chassis) | TX60-6E(Engineering chassis) |
| Machine Parameters | Total Weight | 7830kg | 7850kg |
| Dimensi ons | 7200x2100v2400 mm | 7000x2100x2900 mm | |
| Gradeability | 32% | 36% | |
| Chassis | Wheelbase | 3400 mm | 3600 mm |
| Engine power | 66.7 kw | 70 kw | |
| Max.speed | 60 km /h | 60 km /h | |
| Min. ground clearance | 350 mm | 380 mm | |
| Motor Power | 75 kw | 75 kw | |
| Hydraulic System | Concrete delivery pressure | 32 Mpa | 32 Mpa |
| Pumping System | Max. aggregate particle size | 40 mm | 40 mm |
| Maxi, horizontal conveying distance | 300 m | 300 m | |
| Max. vertical conveying distanee | 200 m | 200 m | |
| Hopper volume | 0.4 m3 | 0.4 m3 | |
| Hopper loading height | 1350 mm | 1450 mm |
Related Projects of Truck-mounted Concrete Pump
Our Truck-mounted Concrete Pump had been exported to more than 200 countries including South Africa, India, Philippine, Malaysia, America, Germany, Pakistan, etc… The following is part of projects. Click More Projects for details.

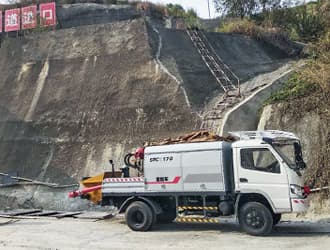

Classic Case of Truck-mounted Concrete Pump
Classic Case of Truck-mounted Concrete Pump
Classic Case of Truck-mounted Concrete Pump
Classic Case of Truck-mounted Concrete Pump
Truck-mounted Concrete Pump Price
Specific price is determined by many factors, such as capacity, models, etc. As the advanced manufacturer and exporter in china, our Truck-mounted Concrete Pump are factory-direct sold, which offer you premium quality and better service.
