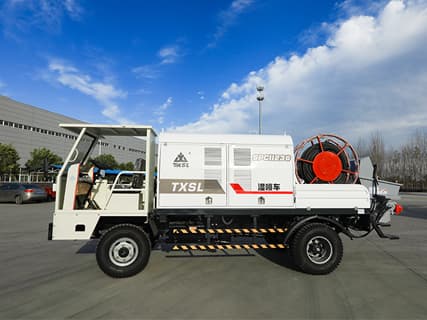

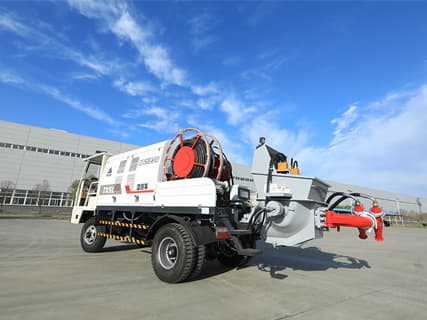

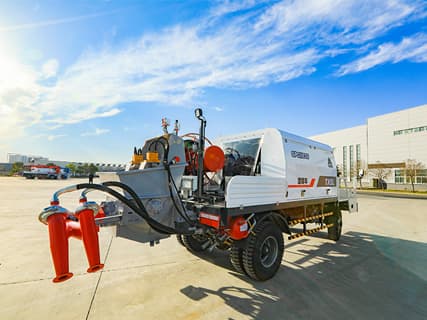

Double Nozzle Spraying Vehicle
Application: Tunnel construction like water conservancy and hydropower, railway, highway and so on.
Introduction Of Double Nozzle Spraying Vehicle
This equipment adopts a specially customized engineering chassis, which has the function of switching between high and low gears, and has strong climbing ability, which can meet the requirements of high climbing performance for road construction.
Product Details Of Double Nozzle Spraying Vehicle
The double-glass pumping system adopts the construction design of “multiple pipes”, , which greatly improves the construction efficiency.
The hydraulic oil pumps and groups used in this equipment are all well-known brands.
The use of the admixture system starts with an effective metering pump, and the dosage.
Equipped with an electric cutting and rewinding lamp, hydraulic drive, saving time and effort.

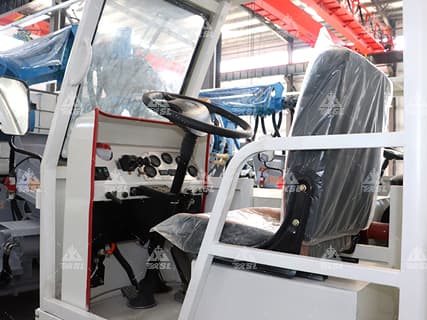

Cab

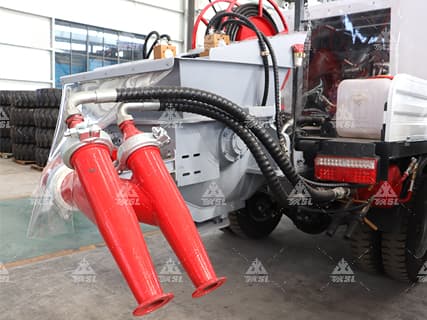

Sprinkler

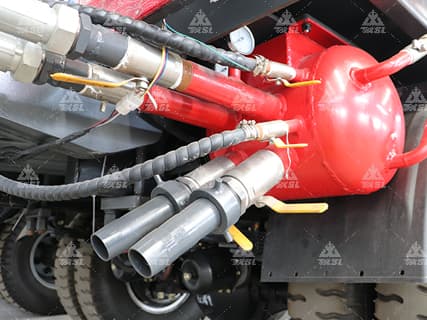

Air circuit assembly

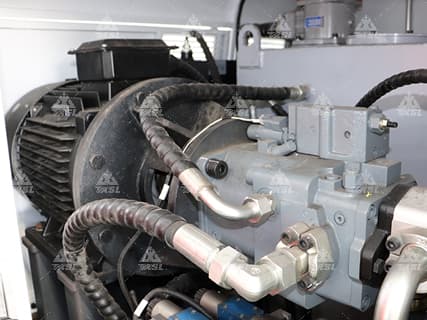

Triple pump

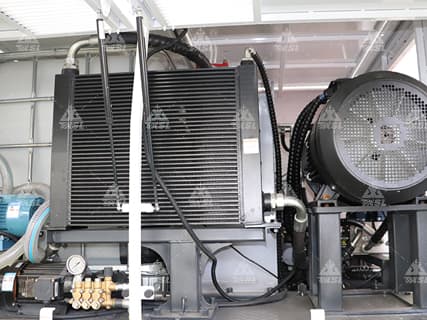

Heat sink

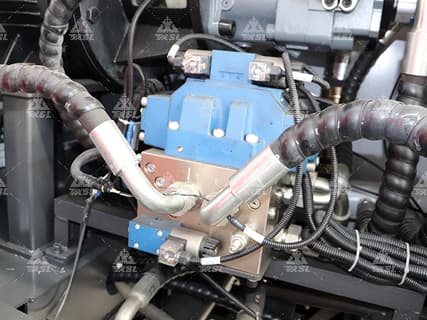

Triple Hydraulic Oil Pump
MODEL &PARAMETERS
| Item | Unit | SPCⅡ23G | |
| Machine parameters | Total weight | kg | 6540 |
| Length×Width×Height | mm | 7000x2150x2395 | |
| Pumping system parameters | Theoretical pumping capacity | m³/h | 4-23 |
| Number of nozzles | piece | 2 | |
| System pressure | MPa | 20 | |
| The max. delivery pressure | MPa | 5 | |
| Inner diameter of feeding cylinder | mm | 160 | |
| Delivery cylinder stroke | mm | 1000 | |
| The max. aggregate size | mm | 15 | |
| Feeding height | mm | 1430 | |
| Electronic control system | Total power | kw | 37 |
| Effective remote control distance | m | 50 | |
| Cable length | m | 100 | |
| Chassis parameters | Distance between wheels | mm | 1700(forward) 1570(back) |
| Distance between shafts | mm | 4220 | |
| Front and rear axle drive form | / | part-time four-wheel drive | |
| The max. gradeability | ％ | 40 | |
| Rated power of diesel engine | kw | 46 | |
| The min. ground clearance | mm | 310 | |
| Auxiliary system parameters | Accelerator metering pump form | / | plunger pump |
| Accelerated dose adjustment method | / | manual | |
| Accelerator pump delivery capacity | L/h | 320×2 | |
| Delivery pressure of accelerator | MPa | Max：1 | |
| Accelerator barrel volume | L | 1000 | |
Related Projects of Double Nozzle Spraying Vehicle
Our Truck-mounted Shotcrete Machine had been exported to more than 200 countries including South Africa, India, Philippine, Malaysia, America, Germany, Pakistan, etc… The following is part of projects. Click More Projects for details.

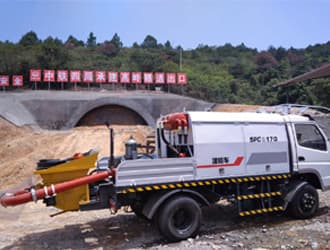

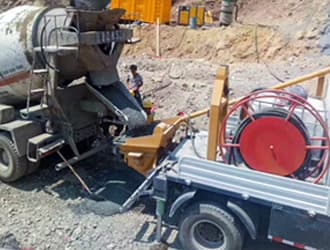

Classic Case of Truck-mounted Shotcrete Machine
Classic Case of Truck-mounted Shotcrete Machine
Classic Case of Truck-mounted Shotcrete Machine
Classic Case of Truck-mounted Shotcrete Machine
Double Nozzle Spraying Vehicle Price
Specific price is determined by many factors, such as capacity, models, etc. As the advanced manufacturer and exporter in china, our Truck-mounted Shotcrete Machine are factory-direct sold, which offer you premium quality and better service.
